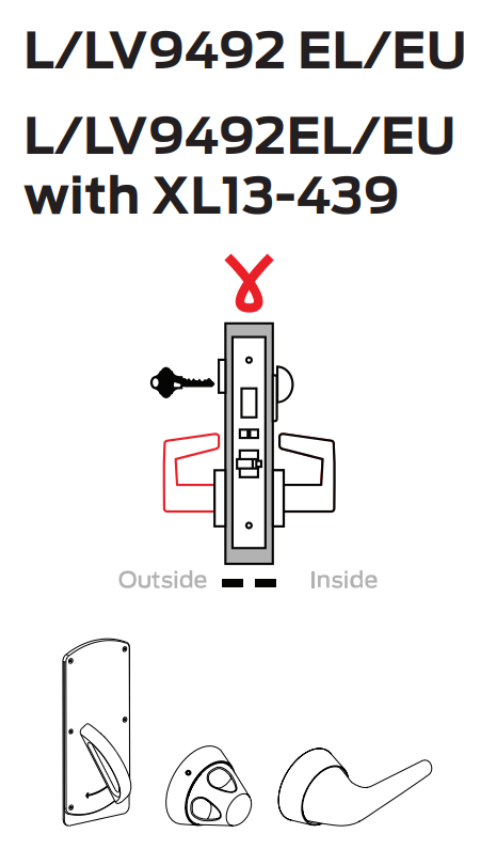

Schlage L9492 EL/EU Electrically locking/unlocking outside lever, outside cylinder, inside thumbturn with deadbolt

• Key cylinder outside; thumbturn inside; deadbolt, latchboltand deadlocking auxiliary latch
• Powered state: outside lever (or knob) continuously locked (EL mode) or unlocked (EU mode); Vandlgard® option allows outside lever to rotate freely down while locked
• Deadbolt thrown or retracted by key outside or by inside thumbturn
• The optional XL13-439 allows key to retract deadbolt overriding thumbturn if being held in locked position
• When power is removed (or power fails): in EL mode either lever will retract latchbolt; in EU mode outside lever is locked; deadbolt projection is independent of electrically locked or unlocked state of outside lever
• Rotating inside lever retracts both deadbolt and latchbolt
• Inside lever always free for immediate egress
