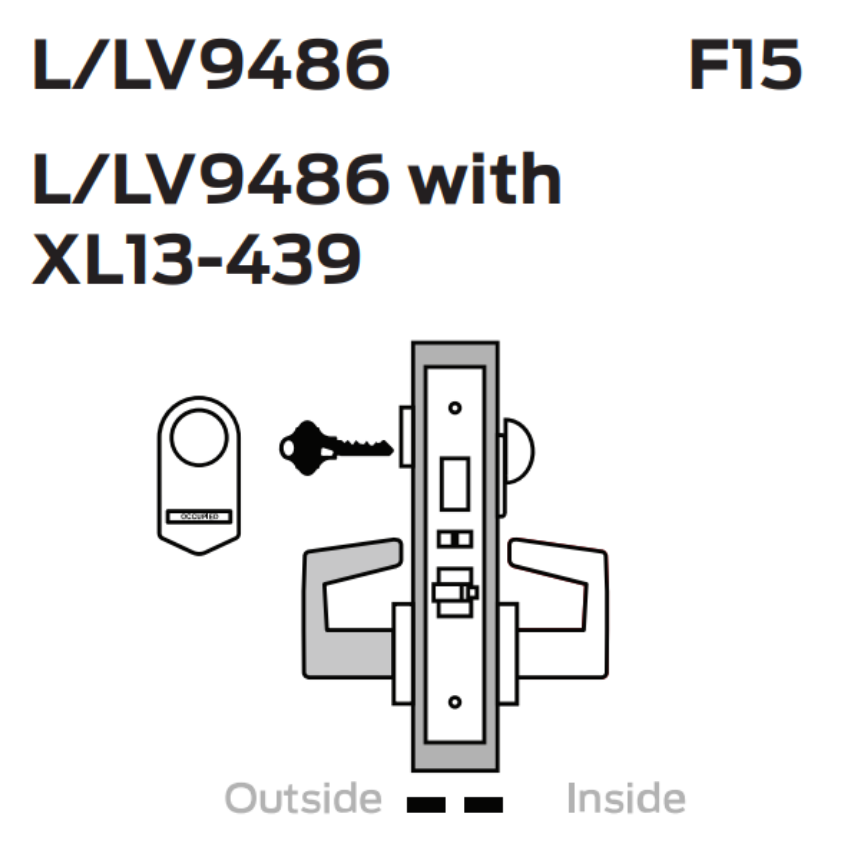

Schlage L9486 Faculty restroom/hotel lock with chevron indicator

• Key cylinder outside; thumbturn inside; deadbolt, latchbolt and deadlocking auxiliary latch
• Outside lever (or knob) always fixed; latchbolt retracted by inside lever; Vandlgard® option allows outside lever to rotate freely down while locked
• Deadbolt thrown or retracted by rotating inside thumbturn, when thrown-indicator message changes from blank to “DO NOT DISTURB”
• Key outside retracts latchbolt but does not retract deadbolt unless using an emergency key (sold separately)
• In addition to the key operation above, the optional XL13-439 key override feature allows the emergency key to retract deadbolt and latchbolt overriding thumbturn if being held in locked position
• Rotating inside lever retracts both deadbolt and latchbolt
• Inside lever always free for immediate egress
