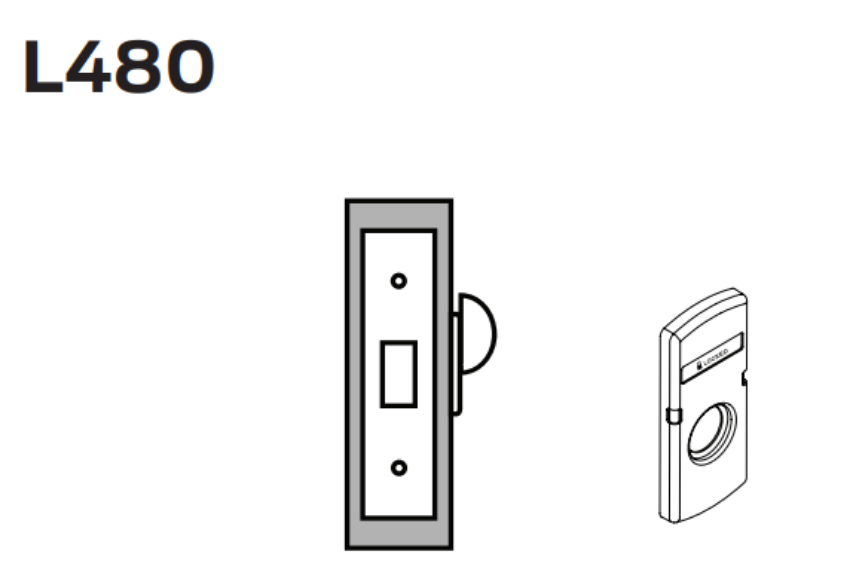

Schlage Commercial Hardware Parts L480 Thumbturn only small case mortise deadbolt

Diagram List

Trim Assembly

Schlage Commercial Hardware Parts L480 Thumbturn only small case mortise deadbolt

Lock Case Assembly

Schlage Commercial Hardware Parts L480 Thumbturn only small case mortise deadbolt

Products by Part Type

Mortise Lock General Parts

• Trim Assembly
  • 09-717 Small Case Deadbolt Armor Front, Over 1-3/4" Doors
  • C203-736 Case Mounting Screw Pack
  • K110-020 Armor front screws
  • L283-099 Small Case Mortise Deadbolt, For Use With L460/62/63/64/80/96
  • 09-544-027 ADA Thumbturn
  • 09-544-033 L Series ADA Thumbturn
  • 09-544-040 L Series ADA Thumbturn
  • 09-544-047 L Series ADA Thumbturn
• Lock Case Assembly
  • L283-003 Deadbolt, 2-3/4" Backset
  • L283-055 Cylinder Retainer Plate & Screw
  • L583-029 Turn Hub
  • L583-035 Turn Hub Spring
  • L583-426 Faceplate Tab 1-1/4"
  • L583-454 Case Cover Screw
  • L583-481 Cylinder Retainer Screw
  • L583-490 Cylinder retainer
  • L583-492 Cylinder retainer screw plate
  • L583-494 Lock case cover
• Lock Case
  • L283-099 Small Case Mortise Deadbolt, For Use With L460/62/63/64/80/96
• Armor Front / Faceplate
  • 09-717 Small Case Deadbolt Armor Front, Over 1-3/4" Doors
• Strikes
  • 10-078 Flat Square Corner Strike With Plastic Box, 4-7/8" x 1-1/4"
  • 10-079 Flat Square Corner Strike With Plastic Box, 1-1/8" x 3-1/2"
  • K510-053 Strike Box
  • K510-066 Box for ANSI Strikes
• Screws Packs
  • C203-736 Case Mounting Screw Pack
  • K110-020 Armor front screws
  • L583-454 Case Cover Screw
  • L583-481 Cylinder Retainer Screw
• Turns
  • 09-544-027 ADA Thumbturn
  • 09-544-033 L Series ADA Thumbturn
  • 09-544-040 L Series ADA Thumbturn
  • 09-544-047 L Series ADA Thumbturn
  • 09-509-027 Thumbturn
  • 09-509-033 Thumbturn
  • 09-509-040 Thumbturn
  • 09-509-047 Thumbturn
  • 09-509-027xL583-363 Large ADA Thumbturn
  • 09-509-033xL583-363 Large ADA Thumbturn
  • 09-509-040xL583-363 Large ADA Thumbturn
  • 09-509-047xL583-363 Large ADA Thumbturn
