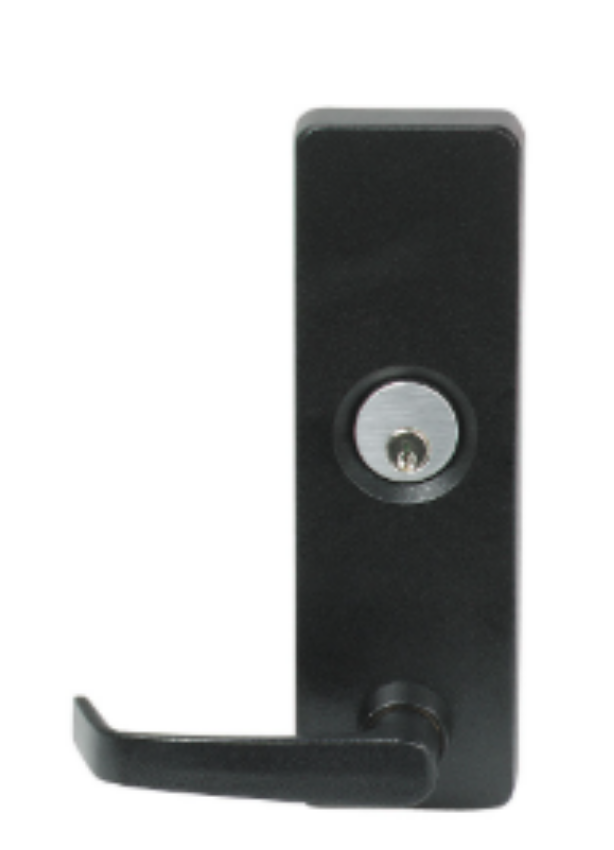

Detex ECL-620 Series

Diagram List

Detex ECL-620 Series Parts Diagram (LHR Shown)

Detex ECL-620 Series

Products by Part Type

Exit Device General Parts

• Lever Arms Kits & Parts
  • 100981 Lever Subassembly
  • 100661 Lifting Yoke
  • 100668 Bottom Cam
  • 100669 Locking Collar
  • 100678 Retaining Plate
  • 100682 Yoke Spring Compression
  • 100687 Top Cam Subassembly
  • 100693 Escutcheon Collar Subassembly
  • 100777 Hex Stand Off
• Fasteners
  • 100676 Flat Washer, .260 x .687 x .02 Nylon
  • 100681 Flat Washer, .188 x .438 x .065 S.S.
  • 100851 Washer, Flat, 1"x0.06 THK, All except J lever
• Screw Packs
  • PP-5187-5 Screw, set 8-32 x 3/16
  • PP-5378-104 Screw, Mach, 8-32 x 1/4" PPH
  • PP-5378-105 Screw, Mach, 8-32 x 5/16 PPH
• Packaging (Optional)
  • PP-5749 Packing Carton
