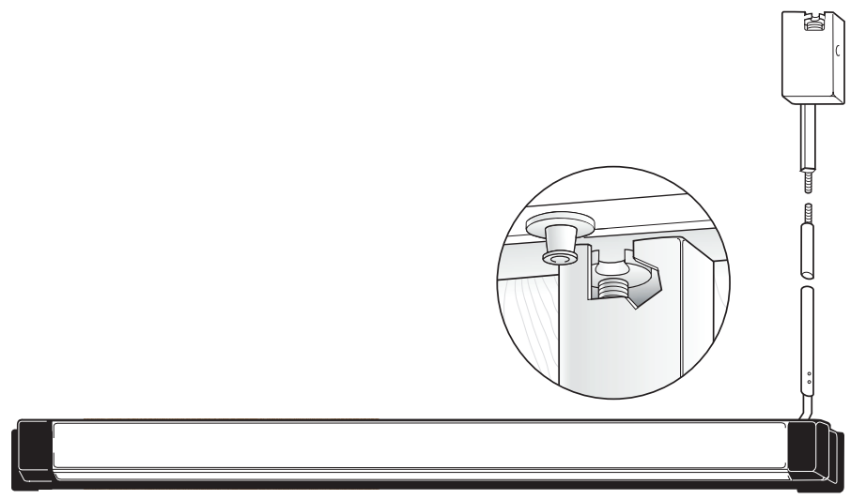

Adams Rite 3900/8900 Series Wood Door Surface Concealed Vertical Rod

The Adams Rite 3900/8900 Series is a surface concealed vertical rod exit device designed for wood door applications. It provides exit operation with concealed vertical top rod and header-mounted single-point latching.

Diagram List

3900/8900 Series Wood Door Surface Concealed Vertical Rod Parts Diagram

Adams Rite 3900/8900 Series Wood Door Surface Concealed Vertical Rod

Products by Part Type

Deadlock General Parts

• Push Bar Assembly
  • 3700-PUSH-BAR-313 Push Bar Assembly for 3700
  • 3700-PUSH-BAR-335 Push Bar Assembly for 3700
  • 3700-PUSH-BAR-628 Push Bar Assembly for 3700
  • 3700-PUSH-BAR-630 Push Bar Assembly for 3700
  • 3700-PUSH-BAR-605 Push Bar Assembly for 3700
  • 3700-PUSH-BAR-606 Push Bar Assembly for 3700
  • 3700-PUSH-BAR-629 Push Bar Assembly for 3700
• End Cap Assembly
  • 41-0903-119 Metal End Cap Assembly
  • 41-0902-05-IP Metal End Cap Assembly
• Upper Cover
  • 22-0332-11-313 Upper Cover - Dark Bronze
  • 22-0332-11-335 Upper Cover - Black
  • 22-0332-11-628 Upper Cover - Satin Aluminum
  • 22-0332-14-629 Upper Cover - Bright Stainless Steel
  • 22-0332-14-630 Upper Cover - Stainless Steel
• Door Hardware Component & Assembly
  • 41-0337 Rod Assembly
  • 31-0579-06 Top Actuator Assembly for 3900 Series
  • 22-0585 Mounting Cap Spacer
  • 23-0335 Tailpiece Adapter
  • 23-0571 Center Block
  • 22-0847 Cover Plate
  • 22-0814-119 Fire Bolt Plate
  • 29-0206 Cross Pin Bolt Assembly
  • 31-0579-05 Top Actuator Assembly for 8900 Series
• Strike
  • 31-0202 Strike Plate Assembly
• Shaft
  • 26-0355 Drive Shaft (No Trim)
  • 26-0359 Drive Shaft (Trim)
• Support Plate
  • 29-0630-121 Support Plate - Dark Bronze
  • 29-0630-626 Support Plate - Satin Chrome
• Screw & Hardware Pack

Adams Rite 3900/8900 Series surface concealed vertical rod exit device for wood doors, available in life-safety and fire-rated configurations.
