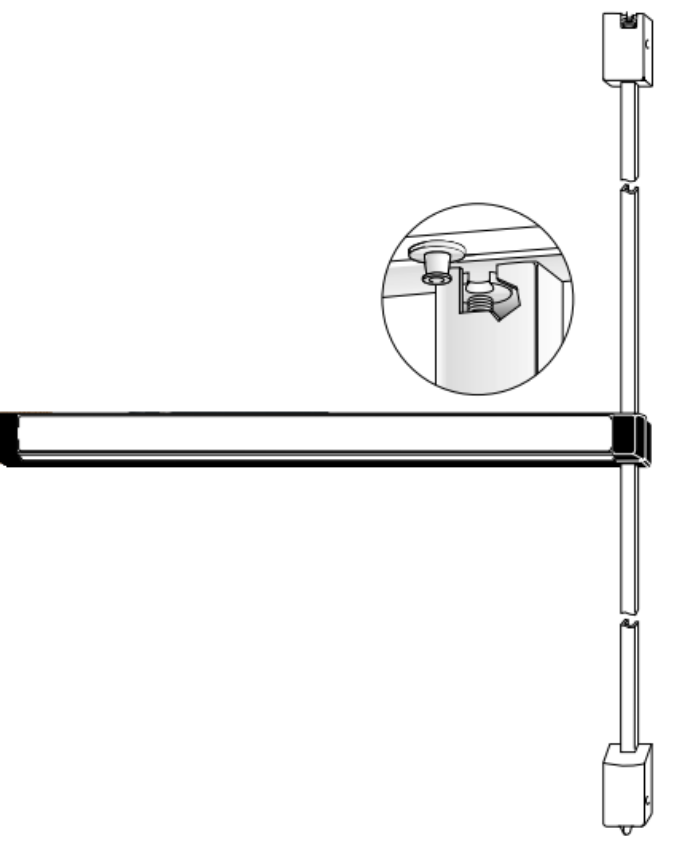

Adams Rite 3100 Series Surface Vertical Rod Exit Device (Including 3100T)

The Adams Rite 3100 Series Surface Vertical Rod Exit Device is a fire-rated door exit device designed to provide panic-free egress through a push bar and vertical rod latching mechanism.

Diagram List

3100 Series Surface Vertical Rod Exit Device (Including 3100T) Parts Diagram

Adams Rite 3100 Series Surface Vertical Rod Exit Device (Including 3100T)

Products by Part Type

Deadlock General Parts

• Push Bar Assembly
  • 3100-Push-Bar-313 Push Bar Assembly for 3100
  • 3100-Push-Bar-335 Push Bar Assembly for 3100
  • 3100-Push-Bar-628 Push Bar Assembly for 3100
  • 3100-Push-Bar-630 Push Bar Assembly for 3100
  • 3100-Push-Bar-605 Push Bar Assembly for 3100
  • 3100-Push-Bar-606 Push Bar Assembly for 3100
  • 3100-Push-Bar-629 Push Bar Assembly for 3100
• Rod Assembly
  • 31-0192-02 Lower Rod Assembly
  • 31-0333-01 Upper Rod Assembly for 3100 Series
• End Cap Assembly
  • 41-0903-119 Metal End Cap Assembly
  • 41-0902-04-IP Metal End Cap Assembly
• Strike
  • 31-0202 Strike Plate Assembly
  • 22-0125 ANSI Strike
• Bolt & Guide Hardware
  • 25-0284-MP Bolt Guide Bushing
  • 31-0175-P Lower Bolt Guide Assembly
• Lower Cover
  • 22-0333-01-313 Lower Cover - Dark Bronze
  • 22-0333-01-628 Lower Cover - Aluminum
  • 22-0333-02-605 Lower Cover - Bright Brass
  • 22-0333-02-606 Lower Cover - Satin Brass
  • 22-0333-04-629 Lower Cover - Bright Stainless Steel
  • 22-0333-04-630 Lower Cover - Satin Stainless Steel
• Upper Cover
  • 22-0332-01-313 Upper Cover - Dark Bronze
  • 22-0332-01-335 Upper Cover - Black
  • 22-0332-01-628 Upper Cover - Aluminum
  • 22-0332-02-605 Upper Cover - Bright Brass
  • 22-0332-02-606 Upper Cover - Satin Brass
  • 22-0332-04-629 Upper Cover - Bright Stainless Steel
  • 22-0332-04-630 Upper Cover - Satin Stainless Steel
• Rod Guide Cover
  • 24-0003-01-313 Rod Guide Cover - Dark Bronze
  • 24-0003-01-335 Rod Guide Cover - Black
  • 24-0003-01-628 Rod Guide Cover - Aluminum
  • 24-0031-605 Rod Guide Cover - Bright Brass
  • 24-0031-606 Rod Guide Cover - Satin Brass
  • 24-0033-629 Rod Guide Cover - Bright Stainless Steel
  • 24-0033-630 Rod Guide Cover - Satin Stainless Steel
• Door Hardware Component & Assembly
  • 41-0235-01 SVR Final Assembly, Complete with Rods
  • 41-0333-01 SVR Final Assembly for Top Rod Devices
  • 23-0059 Lower Housing for 3100 Series
  • 31-0331 Actuator Assembly
• Fastener
  • 26-0584-652-MP Binder Post with Screws
  • 25-0008 Molding Clip
• Screw & Hardware Pack
  • 91-0831-01-313 Screw Pack - Dark Bronze
  • 91-0831-01-335 Screw Pack - Black
  • 91-0831-01-605 Screw Pack - Bright Brass
  • 91-0831-01-606 Screw Pack - Satin Brass
  • 91-0831-01-628 Screw Pack - Satin Aluminum
  • 91-0831-01-629 Screw Pack - Bright Stainless Steel
  • 91-0831-01-630 Screw Pack - Satin Stainless Steel

Shop the Adams Rite 3100 Series Surface Vertical Rod Exit Device, featuring fire-rated vertical rod latching for specified hollow metal and wood door applications.
