General Exit Device Parts

• Center Case Kits & Parts

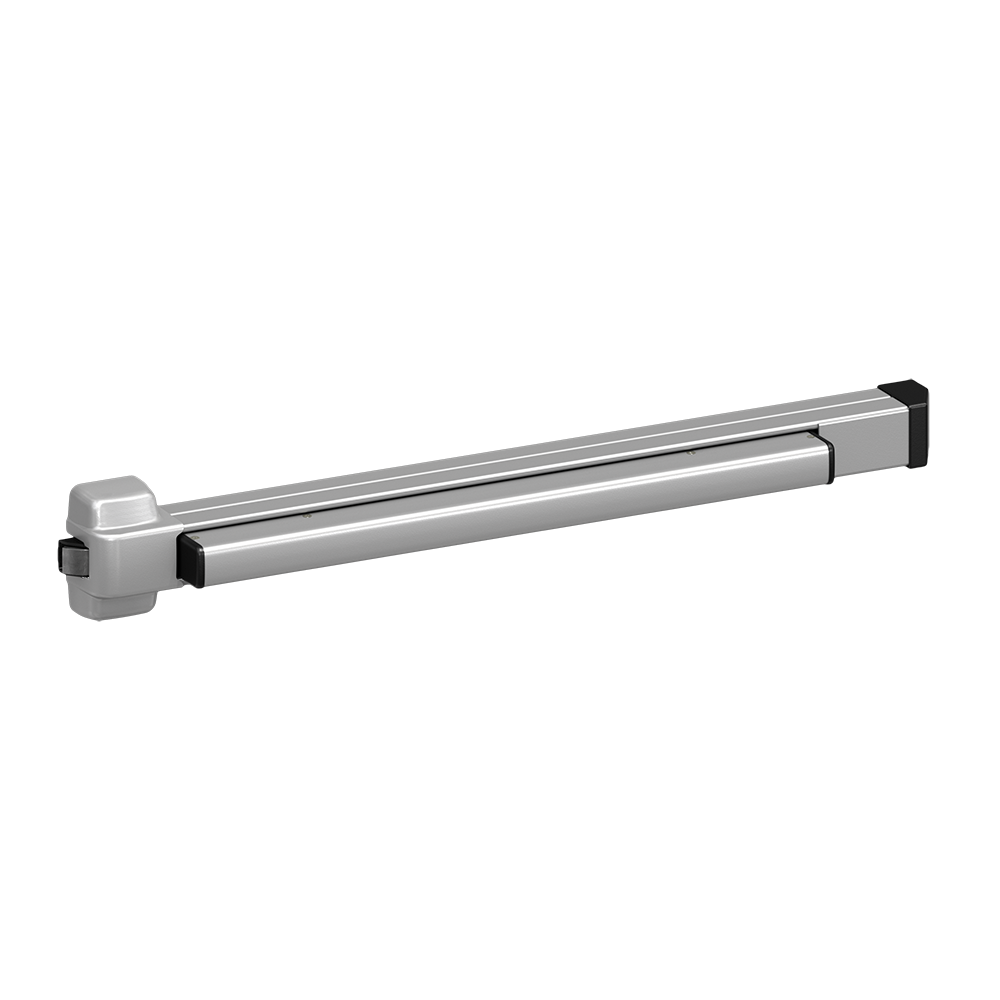

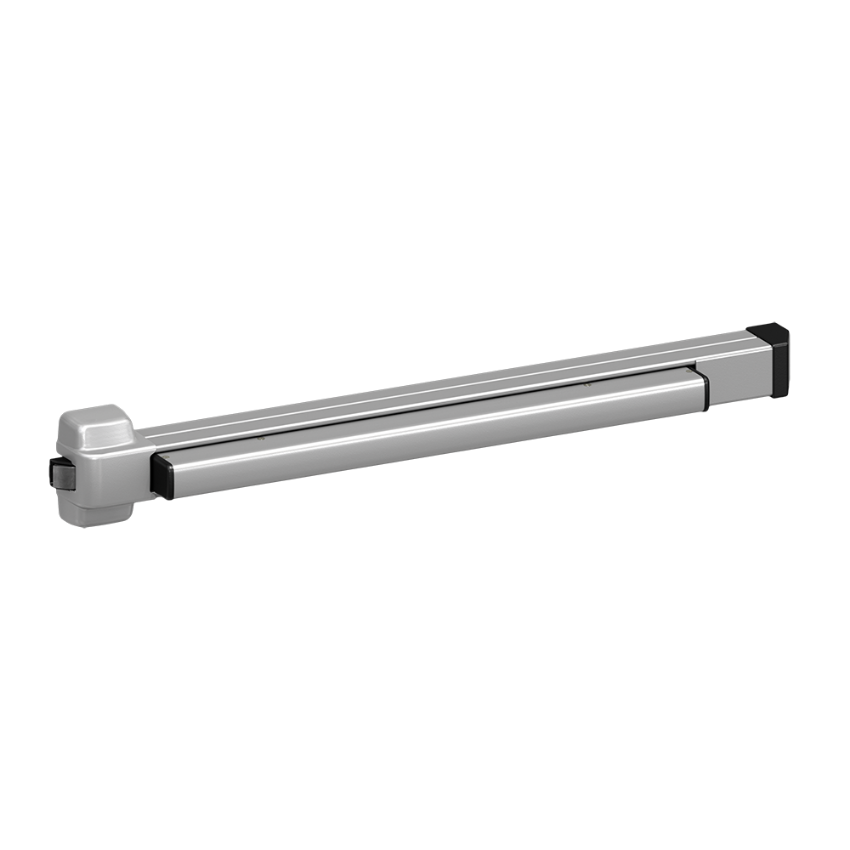

  • 109012, 22/22-F Rim Center Case Less Cover
  • 041174, 22/22-F Center Case Cover
  • 090077, 22 Series Center Case Cover Screw Pkg/4
  • 965409, 22 Pushbar Stop
  • 090107 Center Case Retaining Ring, 10PK
  • 050529 Control Link Pin Kit, with Retaining Ring
  • 090031 Control Link Pin Kit, with Retaining Ring (Pkg of 10)

• Push Bar kits & parts

  • PBKIT, 22 Series Push Bar - 3'
  • PBKIT, 22 Series Push Bar - 4'

• End Cap Kit & Parts

  • 900981 22 End Cap Kit
  • 900397, 22 Metal End Cap Kit

• Cover Plate Kits & Parts

  • 968592, Cover Plate Bearing Insert
  • 969127, 22/2227-F Cover Plate - 3’ Dr
  • 969126, 22/2227-F Cover Plate - 4’ Dr

• Baseplate Parts & Kits

  • 090039 Baseplate Return Spring, Package of 10
  • 090038 Baseplate Bumper, Package of 4
  • 090048, Baseplate Bearing Strip Pkg/2
  • 090037 Baseplate Screw, Package of 10

• Mounting Pkg.

  • 900392, 22 Series Mounting Package

Electrified Options Parts

• QEL Modular Conversion Kit

  • 47447540, 22 QEL Conversion Kit
  • 47447541, 22 HD-QEL Conversion Kit w/ Dogging
  • 47447544, 22 QELX Conversion Kit
  • 47447547, 22 HD-QELX Conversion Kit w/ Dogging

• QEL and EL Parts

  • 47856044, QEL-B modular buzzer kit
  • 114320, QEL Motor Cable
  • 47269206, QEL/MEL Motor Cable with 6' Harness
  • 040069, QEL Motor Cable w/ QEL CON Adapter Harness
  • 106198, QEL CON Adapter Harness
  • 110388 EL 6' Cable, Connector

• Switches N

  • 050254 LX Switch (Latch Bolt Monitor) 3' Devices
  • 050255 LX Switch (Latch Bolt Monitor) 4' Devices
  • 050251 RX Request to Exit Switch
  • 050256 LX-RX Switch Kit (Latch Bolt Monitor, Request to Exit) 3' Devices
  • 050257 LX-RX Switch Kit (Latch Bolt Monitor, Request to Exit) 4' Devices
  • 050270 RX-2 Request to Exit Switches Kit
  • 050283 LX-LC Switch Kit (Latch Bolt Monitor) Low Current, 3' Devices
  • 050285 LX-LC Switch Kit (Latch Bolt Monitor) Low Current, 4' Devices
  • 050281 RX-LC Switch Kit (Request to Exit) Low Current
  • 050289 LX-RX-LC Switch Kit (Latch Bolt Monitor, Request to Exit Switch) Low Current, 3’ Devices
  • 050291 LX-RX-LC Switch Kit (Latch Bolt Monitor, Request to Exit Switch) Low Current, 4’ Devices
  • 051881 Waterproof Request to Exit Switch
  • 050271 RX-AUX Request to Exit Auxiliary Switch Kit
  • 050247 LX-EL Switch Kit (Latch Bolt Monitor) For EL Devices
  • 050287 LX-LC-EL Switch Kit (Latch Bolt Monitor) Low Current, For EL devices
  • 050259 LX-RX-EL Switch Kit (Latch Bolt Monitor, Request to Exit Switch) For EL Devices
  • 050293 LX-RX-LC-EL Low Current Latch Bolt Monitor, Request to Exit Switch

• ALK - Alarm Kit

  • 22 ALK Alarm Kit for 22 Series devices
  • 967704, ALK Cylinder Collar - 22
  • SIGN-1, ALK Sign
  • 969349 Alarm Kit Arming Label
  • 969350 Alarm Kit Disarming Label
  • 969354 Alarm Kit Retainer Nut
  • 990637 Alarm Kit Battery
  • 106182, ALK CON Adapter Harness
  • 090036 Cover Plate Anti-Rattle Spring, Package of 10
  • 47675728, Nylon Snap Rivet Pkg/10

• Allegion Connect N

  • CON-6, 6" Wire Harness, Molex Connectors On Both Ends
  • CON-12, 12" Wire Harness, Molex Connectors On Both Ends
  • CON-26, 26" Wire Harness, Molex Connectors On Both Ends
  • CON-32, 32" Wire Harness, Molex Connectors On Both Ends
  • CON-38, 38" Wire Harness, Molex Connectors On Both Ends
  • CON-44, 44" Wire Harness, Molex Connectors On Both Ends
  • CON-50, 50" Wire Harness, Molex Connectors On Both Ends
  • CON-192, 192" Wire Harness, Molex Connectors On Both Ends
  • CON-6P, 6" Wire Harness, Molex Connector On One End, Crimped Pins On The Other End
  • CON-12P, 12" Wire Harness, Molex Connector On One End, Crimped Pins On The Other End
  • CON-26P, 26" Wire Harness, Molex Connector On One End, Crimped Pins On The Other End
  • CON-32P, 32" Wire Harness, Molex Connector On One End, Crimped Pins On The Other End
  • CON-38P, 38" Wire Harness, Molex Connector On One End, Crimped Pins On The Other End
  • CON-44P 44" Wire Harness, Molex Connector On One End, Crimped Pins On The Other End
  • CON-50P, 50" Wire Harness, Molex Connector On One End, Crimped Pins On The Other End
  • CON-192P, 192" Wire Harness, Molex Connector On One End, Crimped Pins On The Other End
  • CON-6W, 6" Wire Harness, Molex Connector On One End, Bare Wires On The Other End
  • CON-KIT Connector Service Kit

• Power supplies N

  • Von Duprin / Schlage PS902 Base Power Supply
  • Von Duprin / Schlage PS904 Base Power Supply
  • Von Duprin / Schlage PS906 Base Power Supply
  • Von Duprin / Schlage PS9014 Base Power Supply
  • 900-4R Optional Distribution Board, Independently Controlled Relays
  • 900-2RS, 2 Relay board output
  • 900-4RL, 4 Relay board integrated logic for controlling security interlocks, auto operators and time delays
  • 900-8F Optional Distribution Board, 8 Fuse Protected Outputs
  • 900-8P Optional Distribution Board, 8 PTC Protected Outputs
  • 900-BBK Optional Distribution Board, Battery Backup Kit, Includes Two 7A/hour Batteries
  • 900-BB Optional Distribution Board, Battery Backup Board Only
  • 900-FA Optional Distribution Board

• Electric Power Transfers

  • EPT-2 Electric Power Transfer, Two 18 Gauge Wires
  • EPT-10 Electric Power Transfer, Ten 24 Guage Wires

Exit Device Accessories & Parts

• Cylinders

  • 3215 Standard Mortise Cylinder
  • 3216 Standard Rim Cylinder

• Door Kits N

  • 229 Cover Plate, 22 Rim Device
  • 22GBK, 22 Series Glass Bead Kit

• Sex Bolts N

  • 325 Sex Bolts, Thread Size 1/4 to 20 (034902)
  • 425 Sex Bolts, Thread Size 10-24, Pack of 2

• Mullions N

  • 9954 Steel Mullion, Prepared for Two 268 or 499F Strikes only
  • 9854 Steel Mullion, for one 268 or 499F strike

• Strikes N

  • 299F Rim/Vertical Rod Top Strike, Fire Rated
  • 499F Rim/Vertical Rod Top Strike, for 22/75/78/98/99 w/9954 Mullion - Standard

• Trims N

  • Von Duprin 110-NL Night Latch Cylinder Mounting Assembly
  • Von Duprin 210DT Dummy Trim
  • Von Duprin 210NL Night Latch Trim
  • 210K Grade 1 Knob Trim, Classroom Function, Cylinder Included
  • 210K-BE Grade 1 Knob Trim, Classroom Function, Blank Escutcheon
  • 230L Grade 1 Lever Trim, Classroom Function
  • 230L-BE Grade 1 Lever Trim, Classroom Function, Blank Escutcheon
  • 230TP Thumbpiece Trim, Classroom Function
  • 230TP-BE Thumbpiece Trim, Classroom Function, Blank Escutcheon
  • 230EO Grade 1 Exit Only Trim Plate
  • 230DT Grade 1 Pull Trim, Dummy Function, Wing/Finger Pull
  • 230NL Grade 1 Pull Trim, Night Latch Function, Escutcheon Pull
